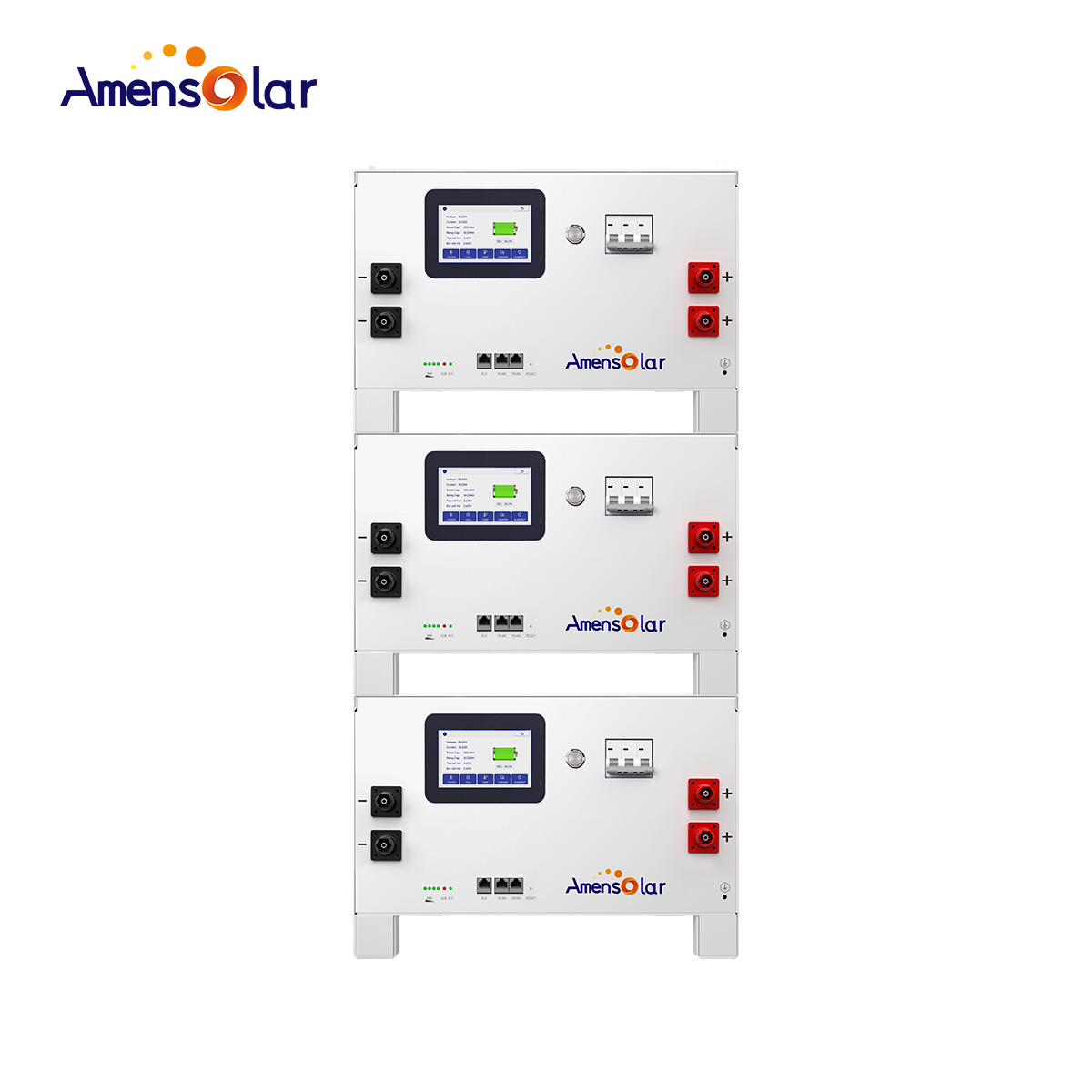

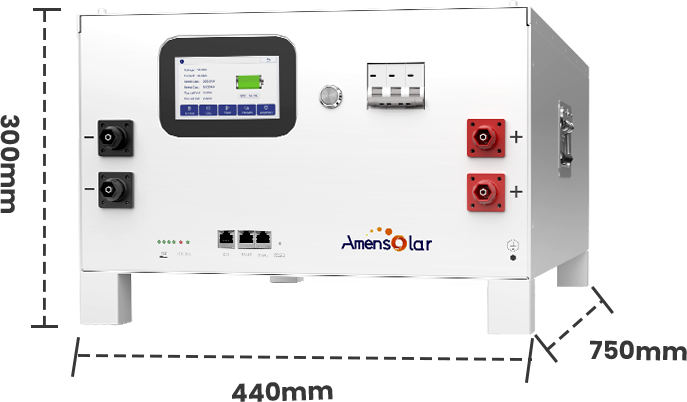

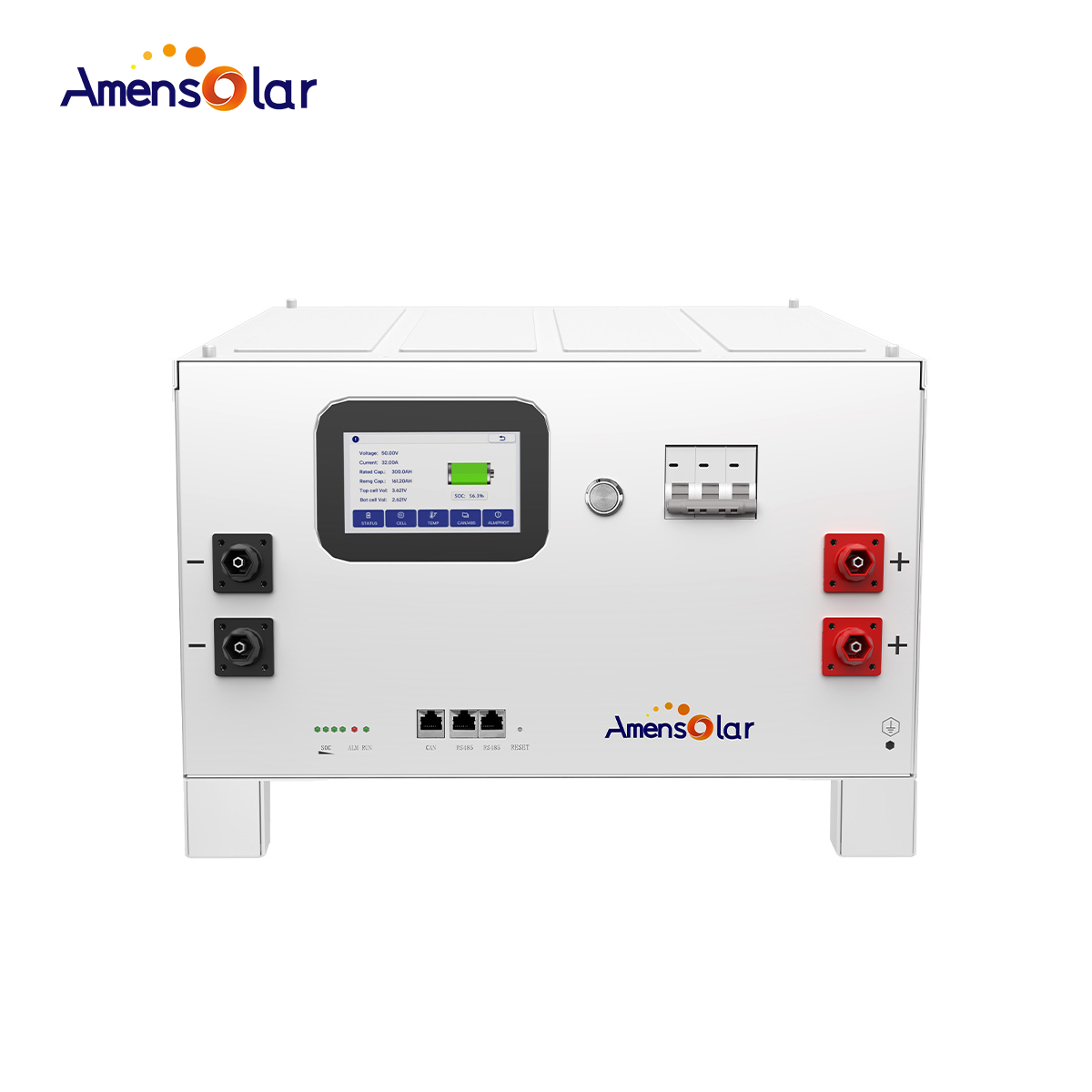

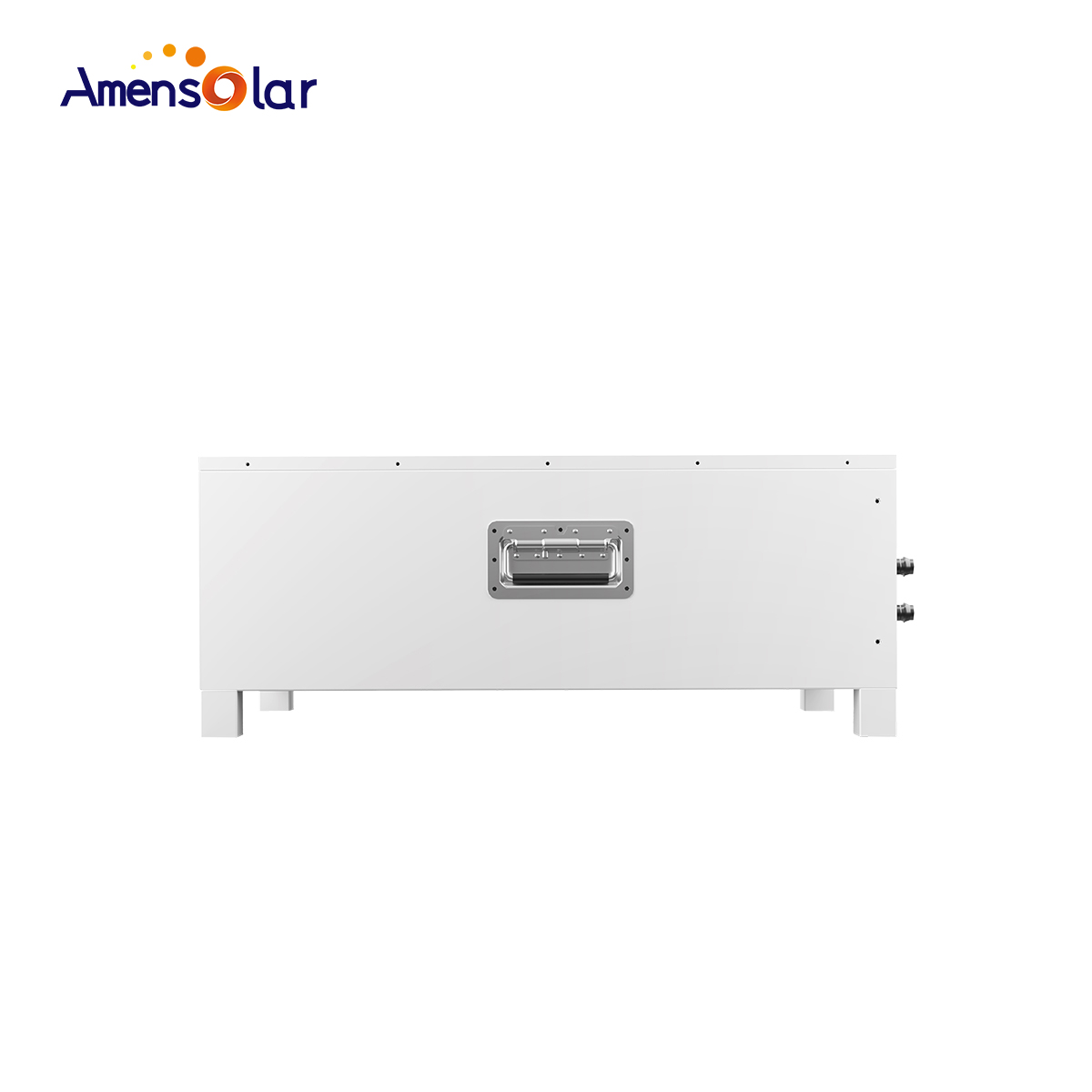

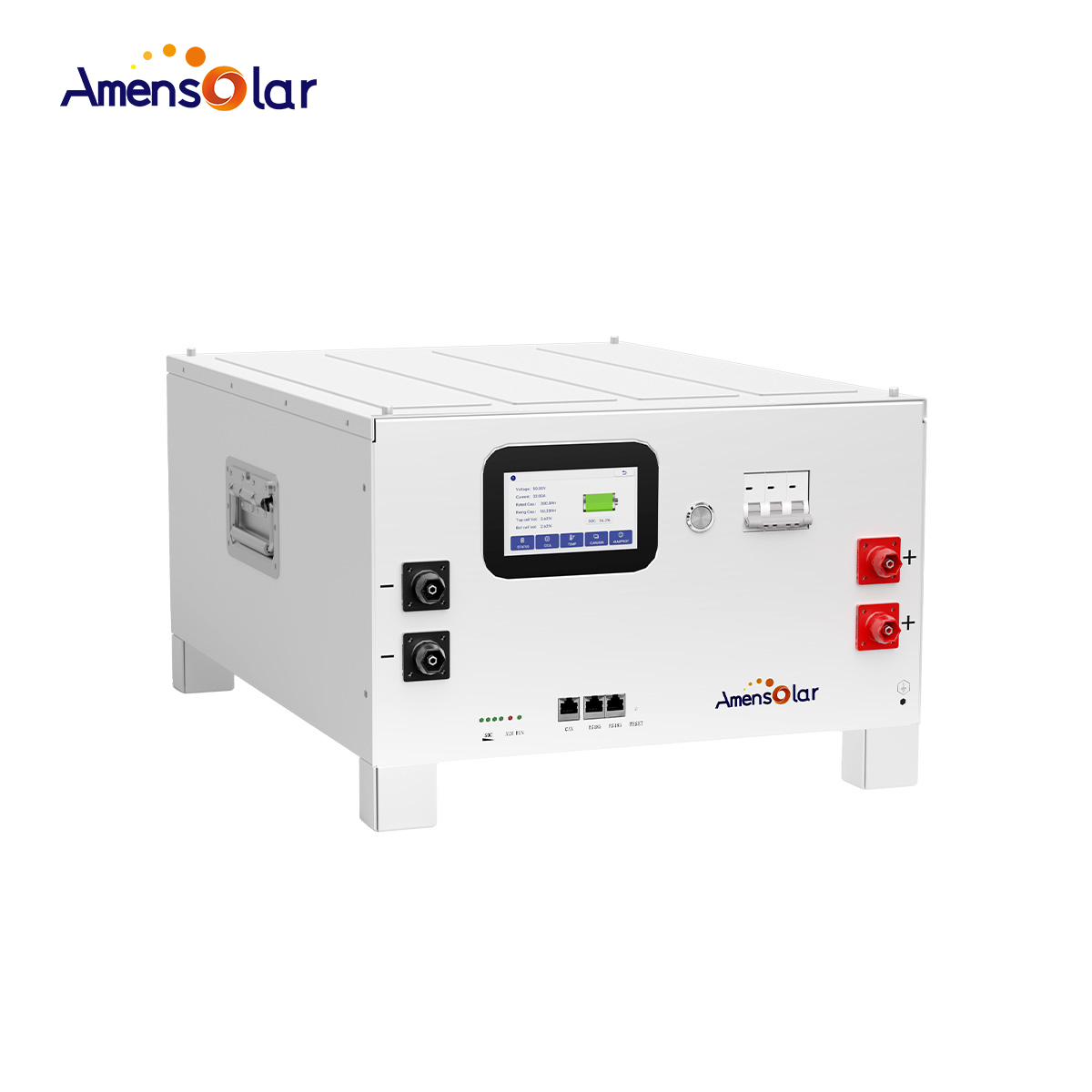

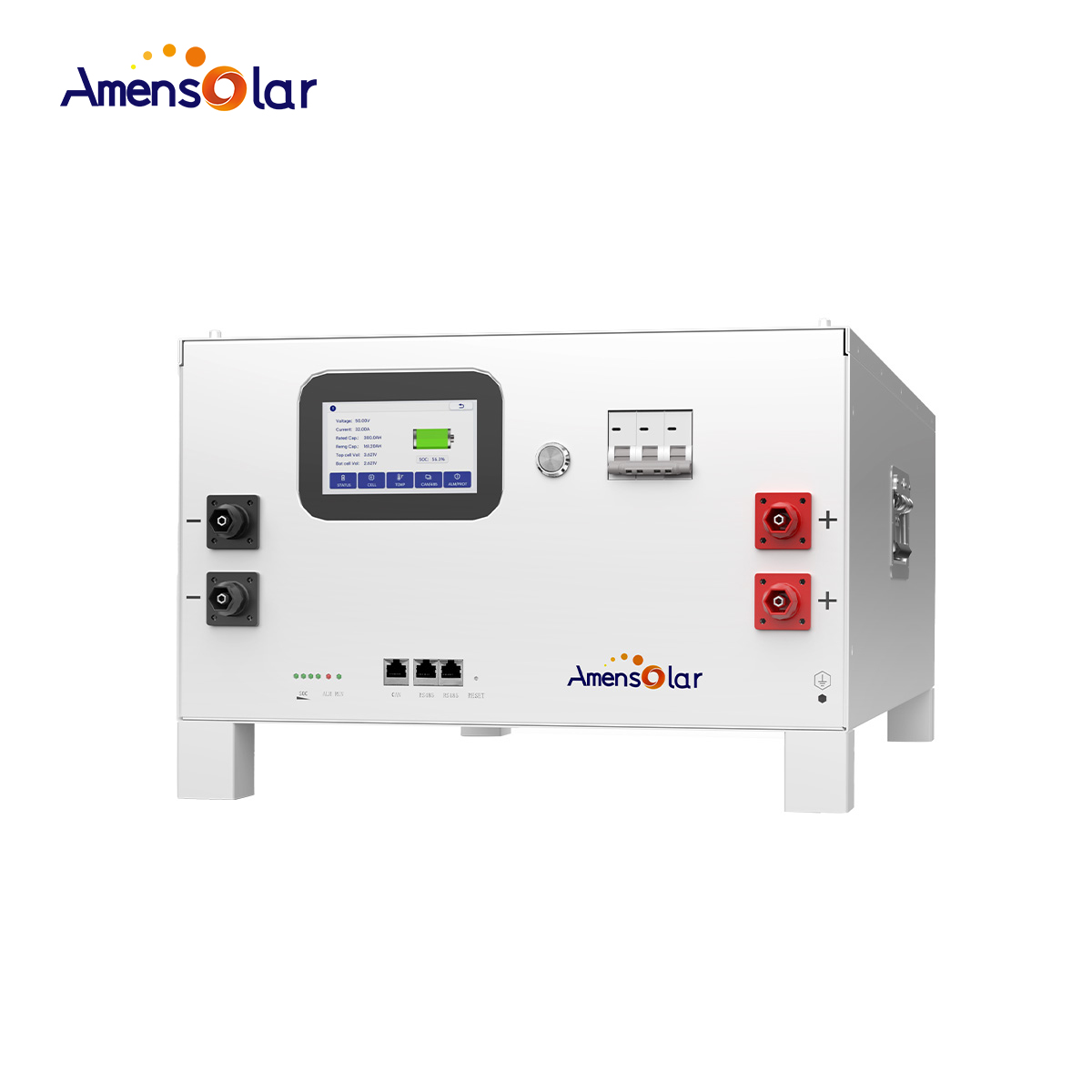

S52300 51.2V 16KWH Stack-mounted Lithium Battery

1. Cycle life：>8000 Cycles @ 90%DOD.

2. Intelligent BMS：Wider compatibility.

3. Compact Design and Safety Protection.

4. Consistency of battery cells：20 Years life span Settable charging voltage.

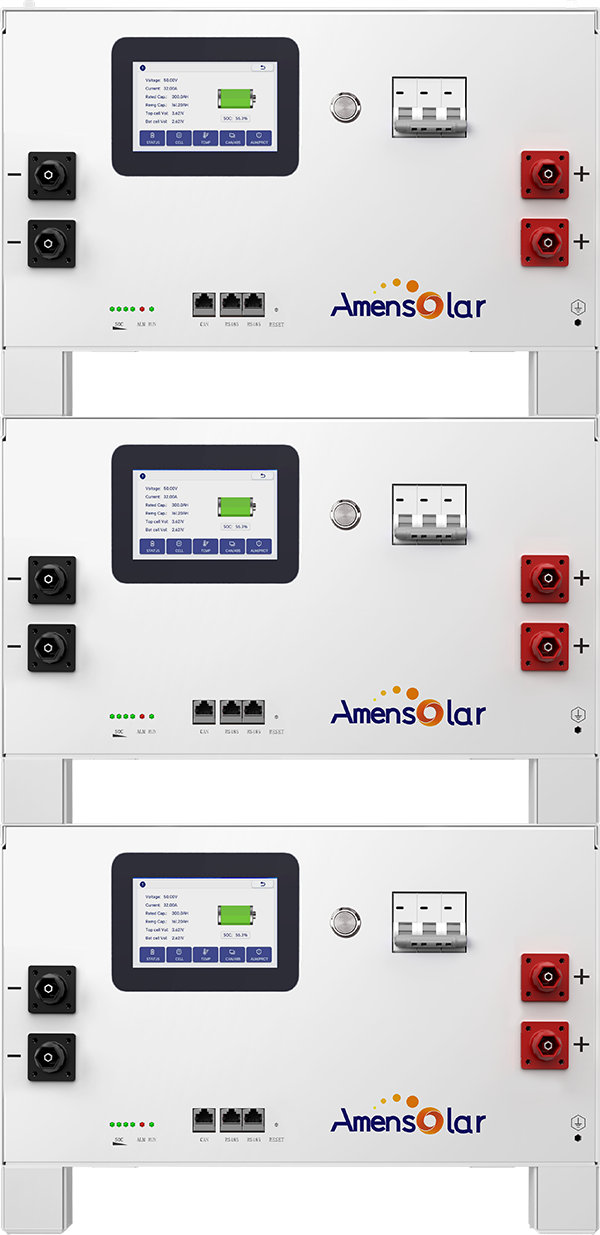

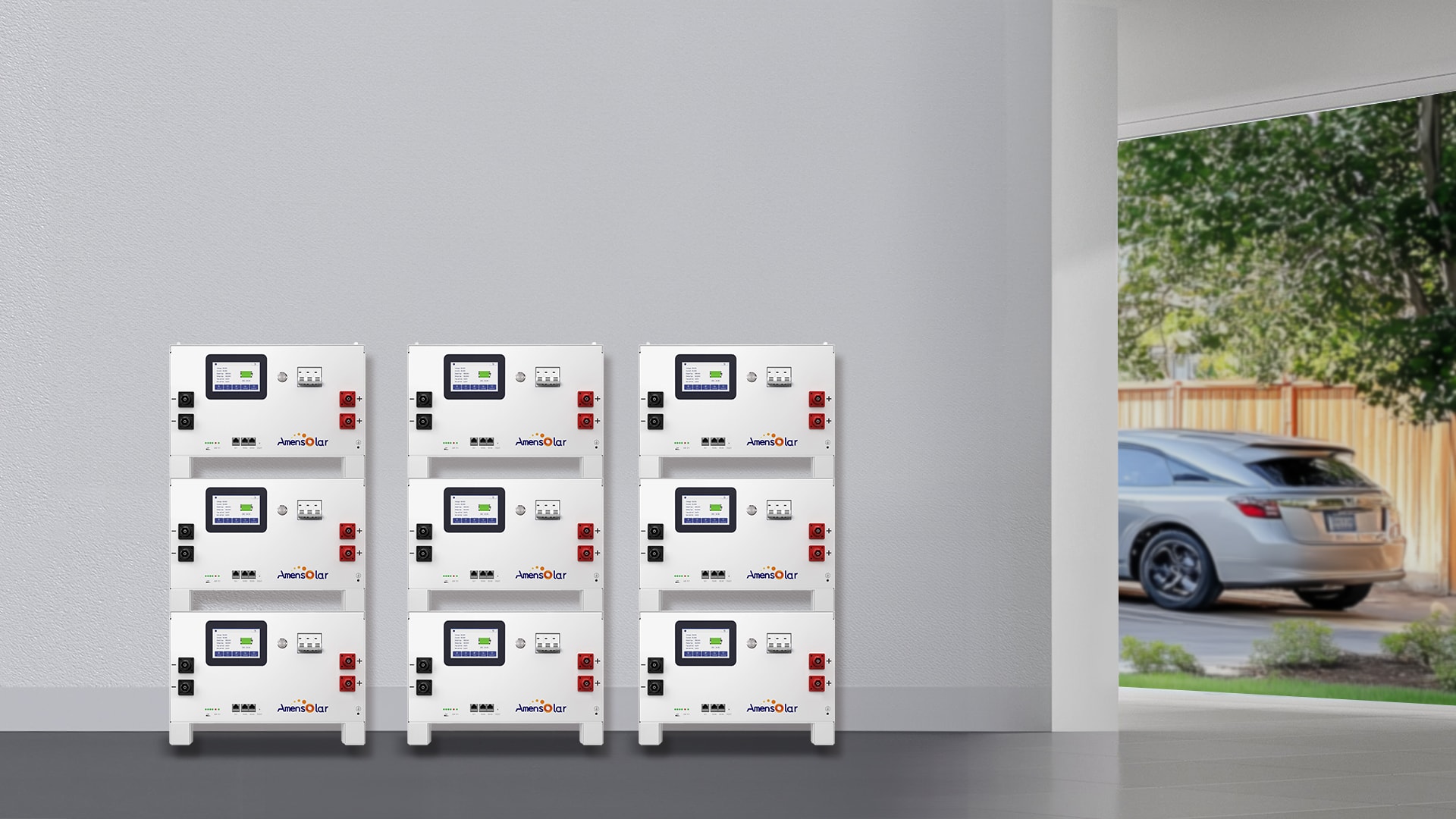

5. Scalable: paralleled 16 sets：Battery:16kWh - 256kWh.

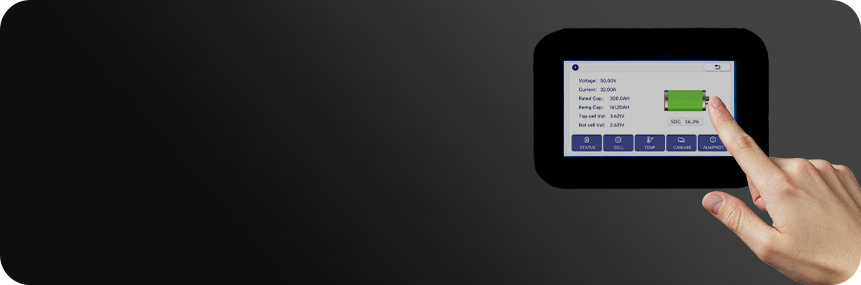

6. Touch screen：Set communication protocol and DIP View battery information.

7. Safety Standard：IEC61000/CE/UN38.3/MSDS.

Data Sheet

AMF16000 51.2V | 16KWH | Floo...

LFP 16kWh / LV 51.2V | 16KWH | Floo...

Model	S52300
Module Type	LFP 16kWh / LV
Nominal Voltage	51.2V
Operatng Voltage Range	44.8~58.4V
Nominal Capacity	300Ah
Nominal Energy (at 25°C)	16kWh
DOD	90%
Charge/Discharge Current	100A
Max Charge/Discharge Current	200A
Charge Temperature	0~55℃
Discharge Temperature	-10~50℃
Relative Humidity	5% – 95%
Communication Interface	CAN / RS485
Enclosure Protection Rating	IP 52
Cooling Type	Natural cooling
Cycle Life	≥8000
Warranty	10 years
Life Span	20+ Years (25°C)
Max. Pieces of Parallel	16
Dimension (LWH)	750440300mm
Weight	125±1kg
Certificates	IEC61000/CE/UN38.3/MSDS
