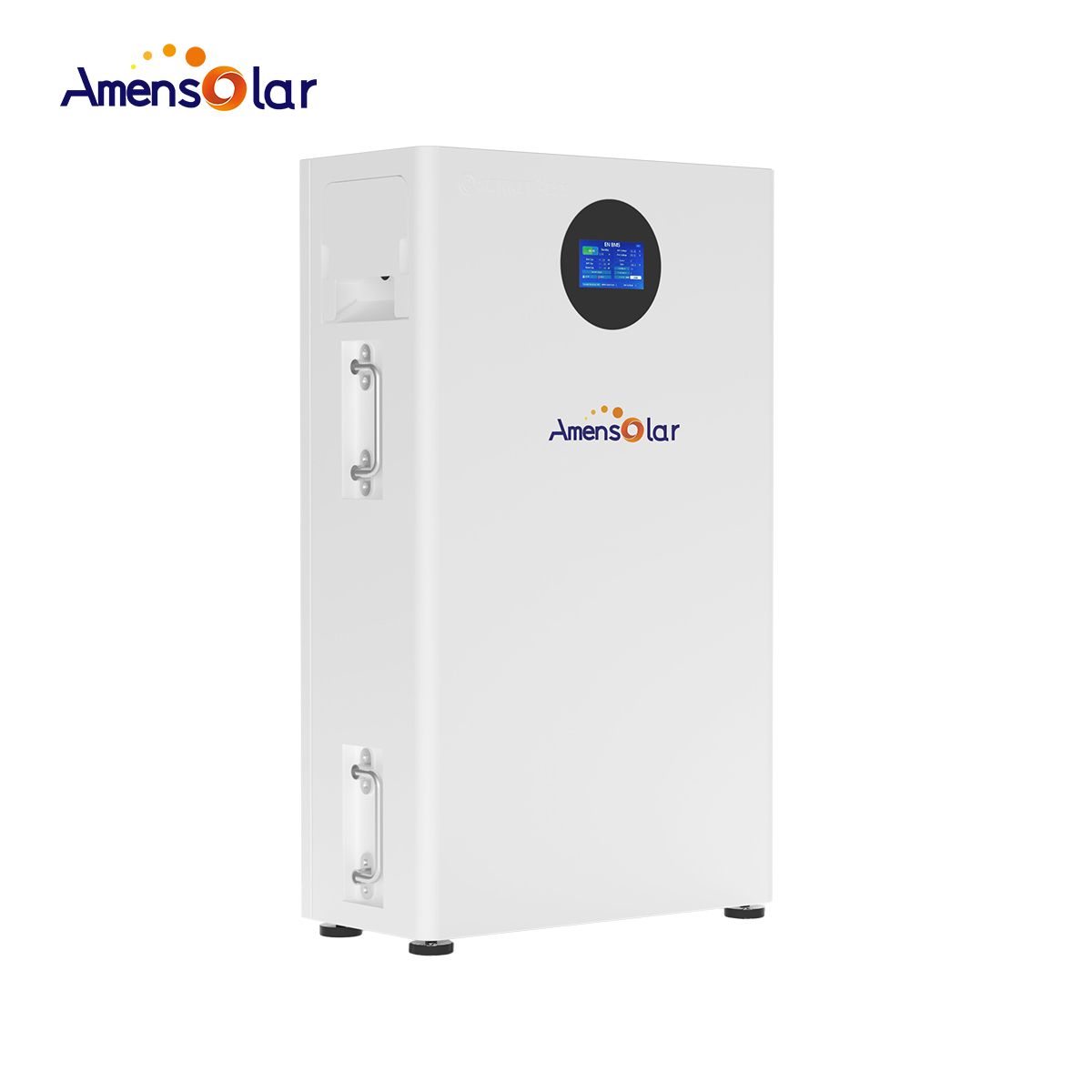

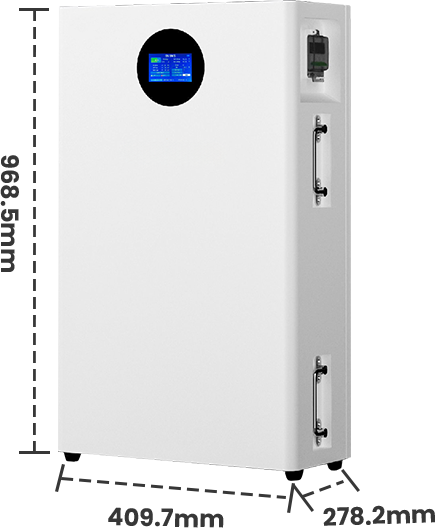

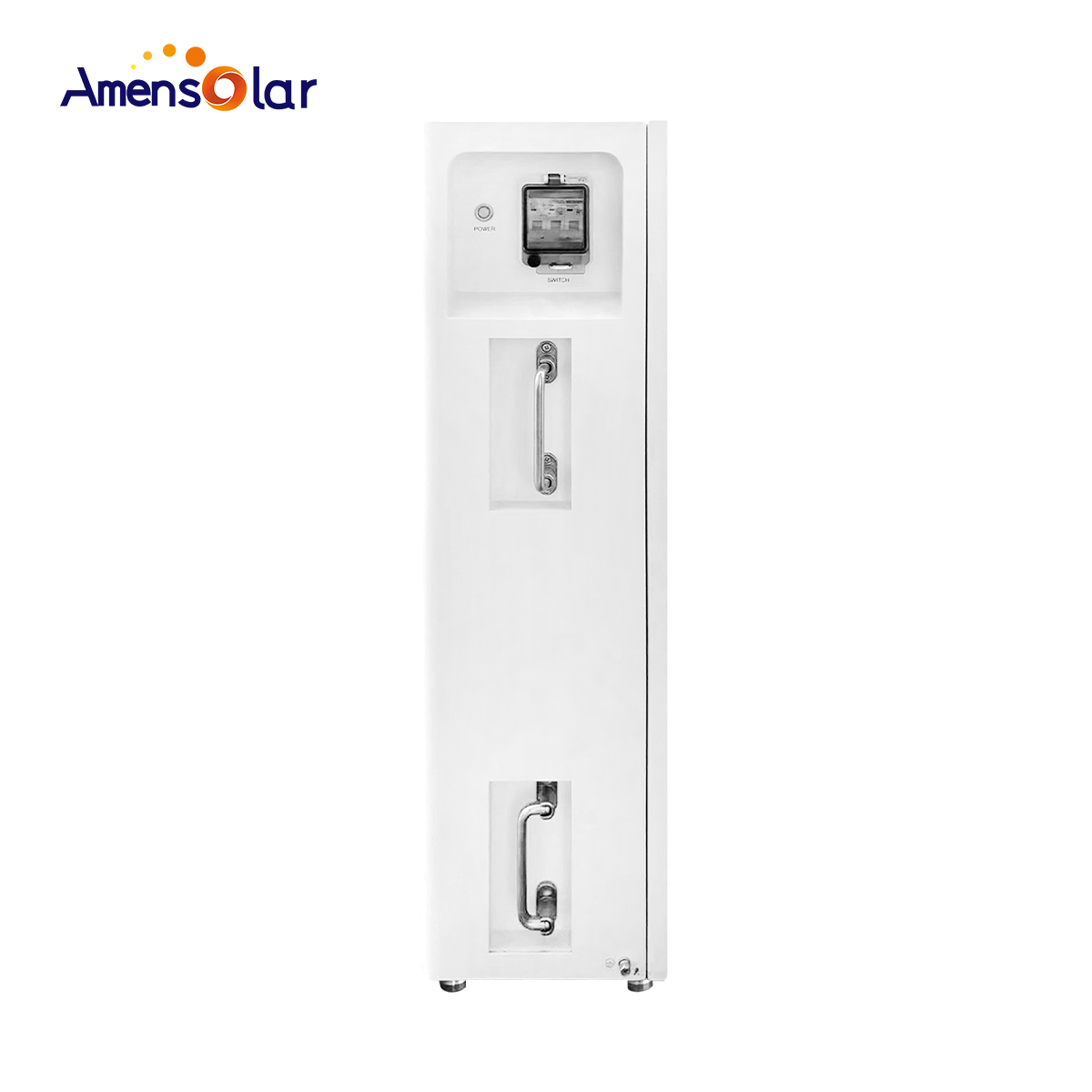

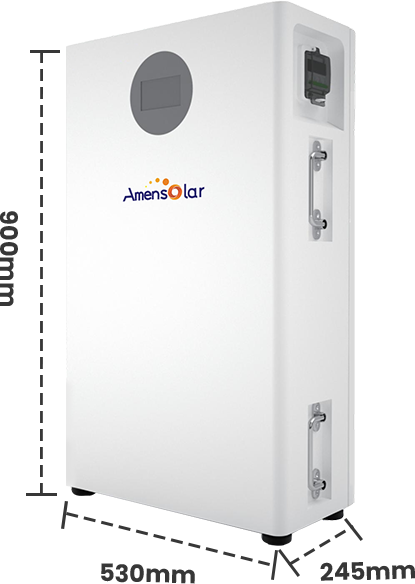

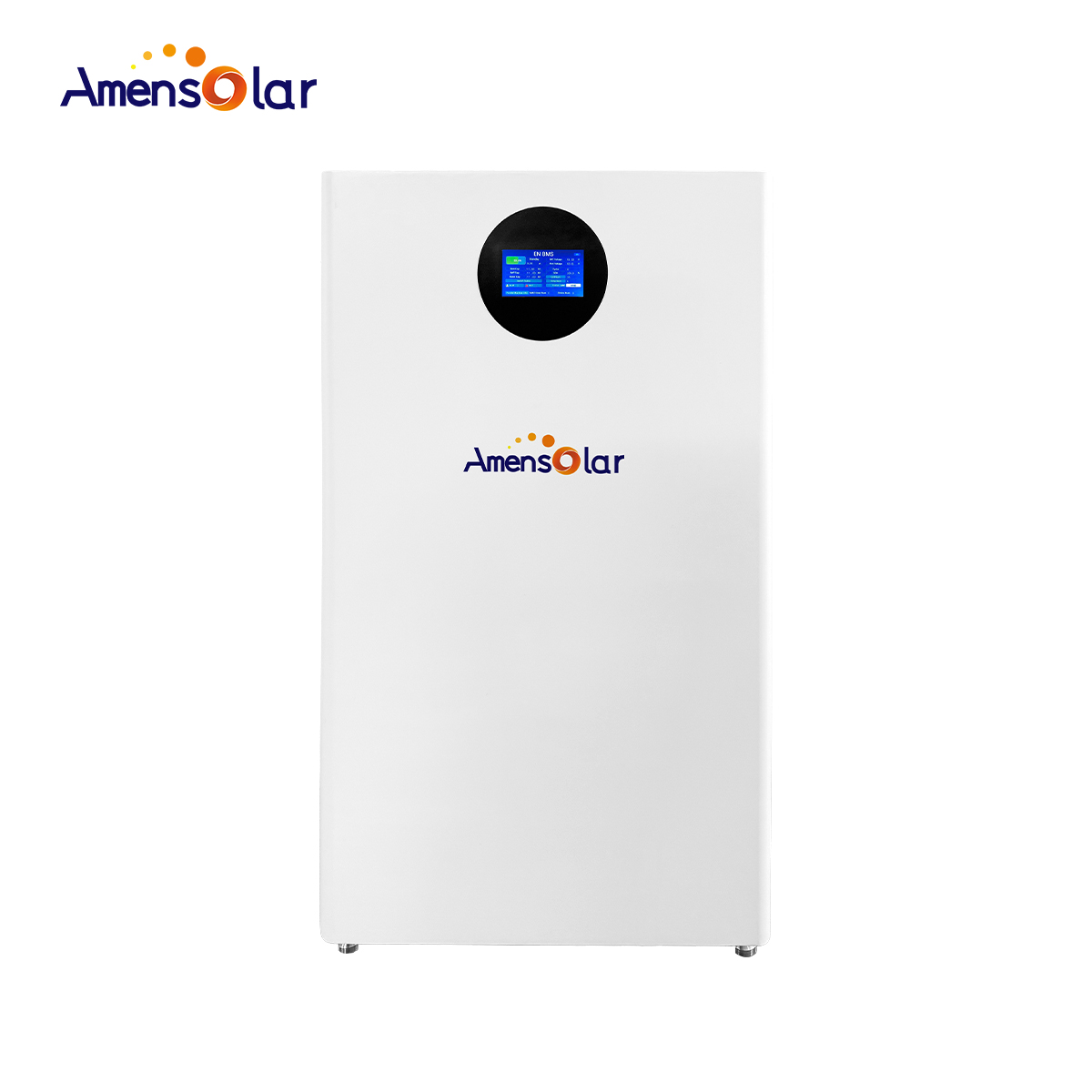

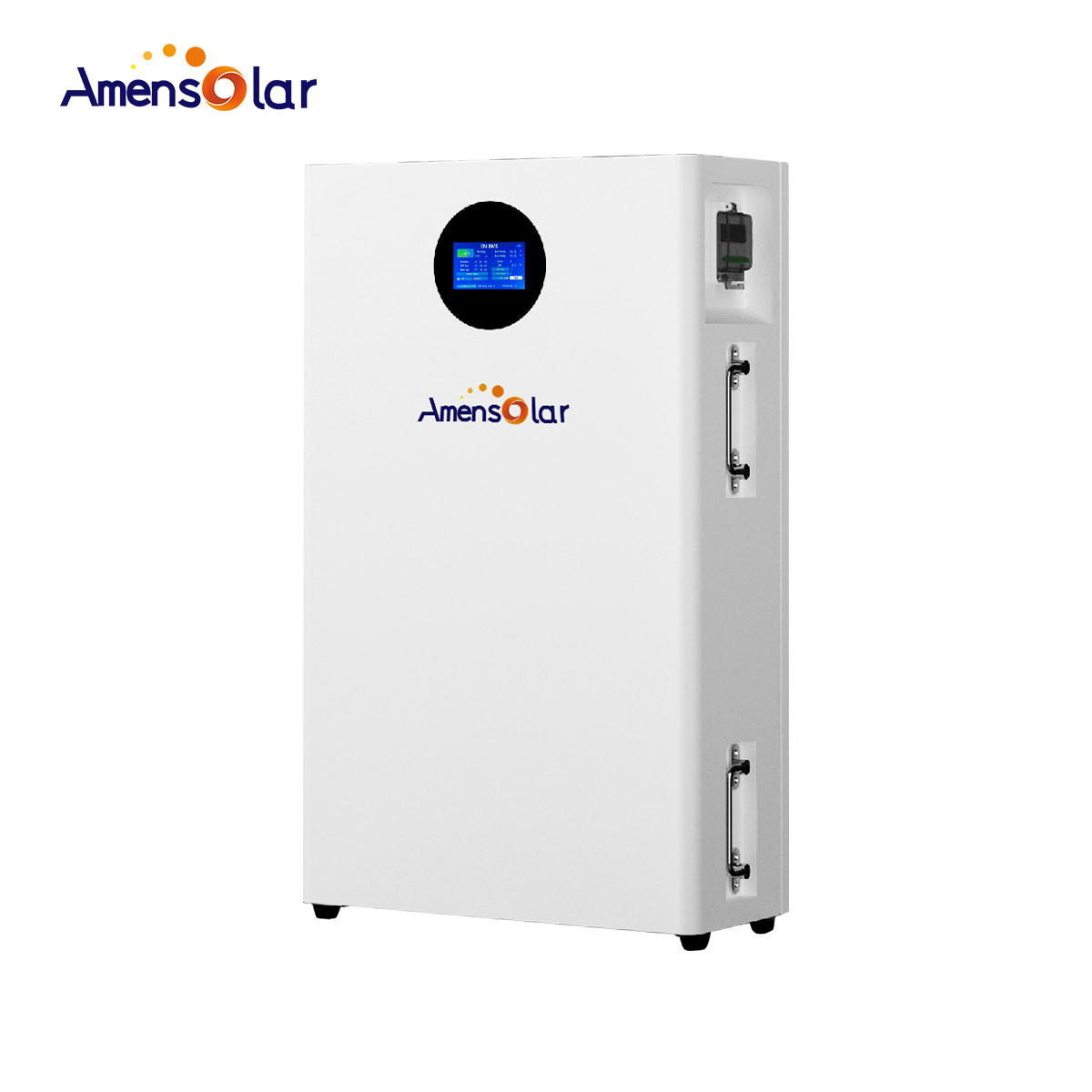

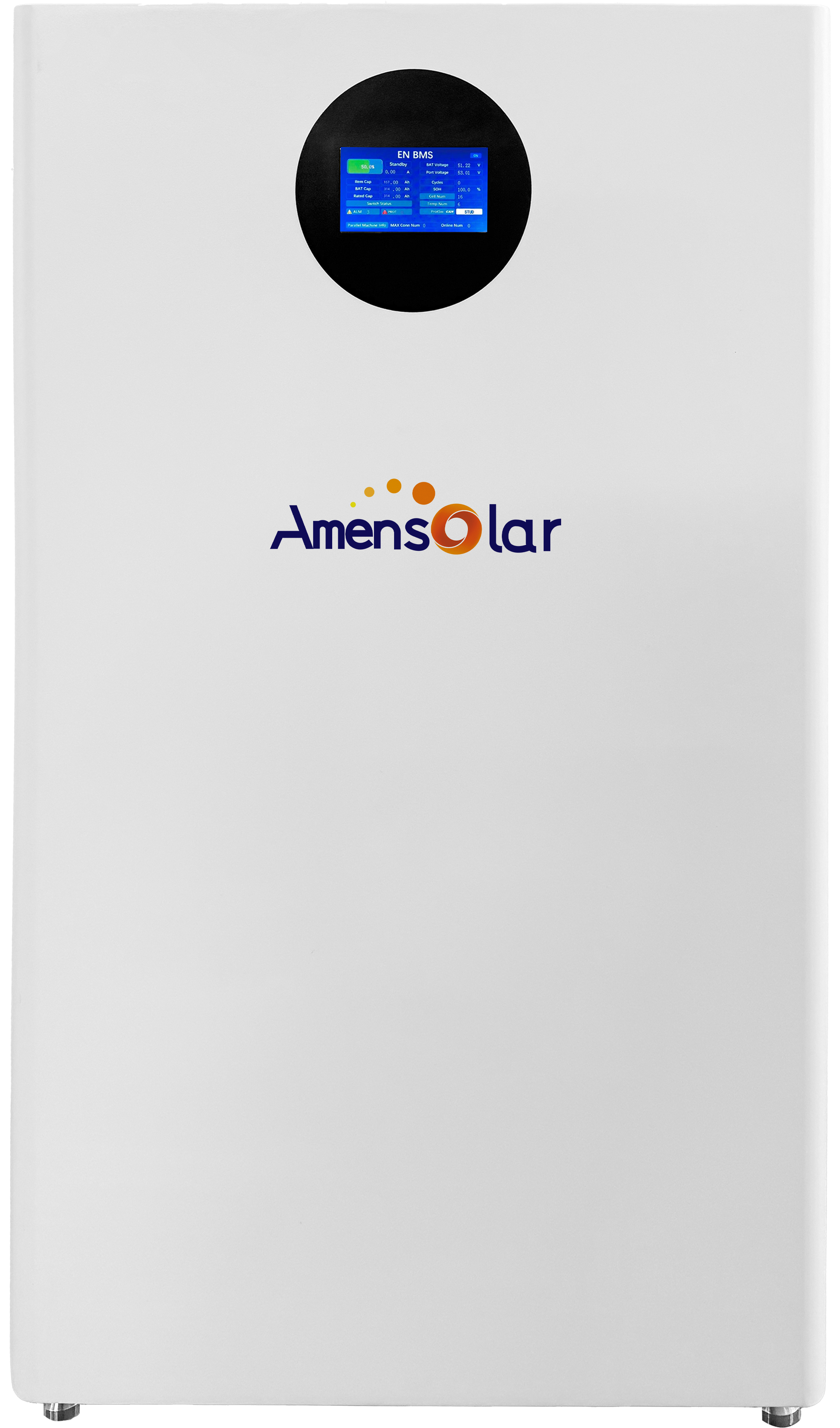

LFP 16kWh / LV 51.2V 16KWH Floor-mounted Lithium Battery

1. Cycle life：>6000 Cycles @ 90%DOD.

2. Intelligent BMS：Wider compatibility.

3. Compact Design and Safety Protection.

4. Consistency of battery cells：>=15 Years .

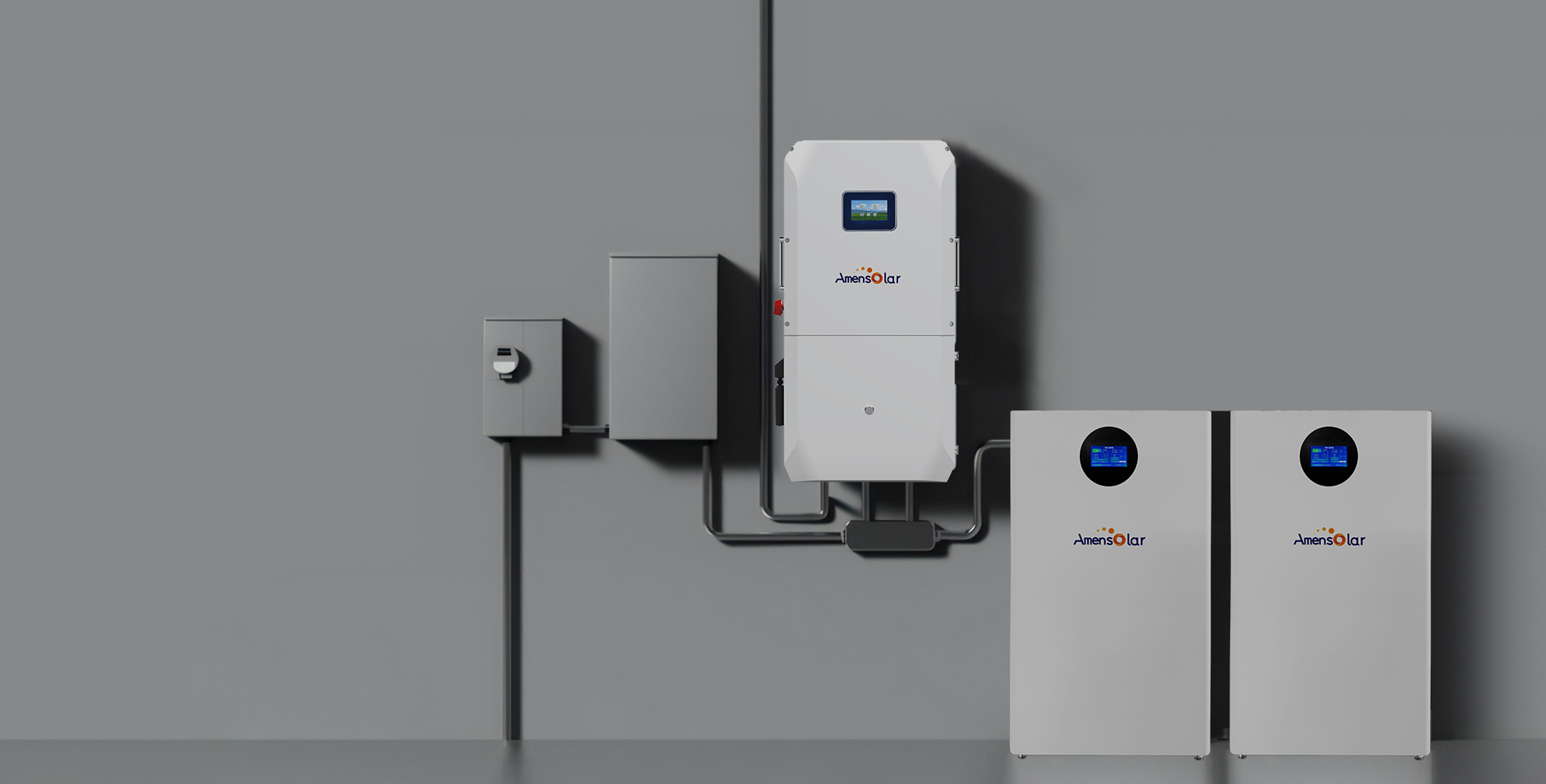

5. Scalable: paralleled 16 sets：Battery:16kWh - 256kWh.

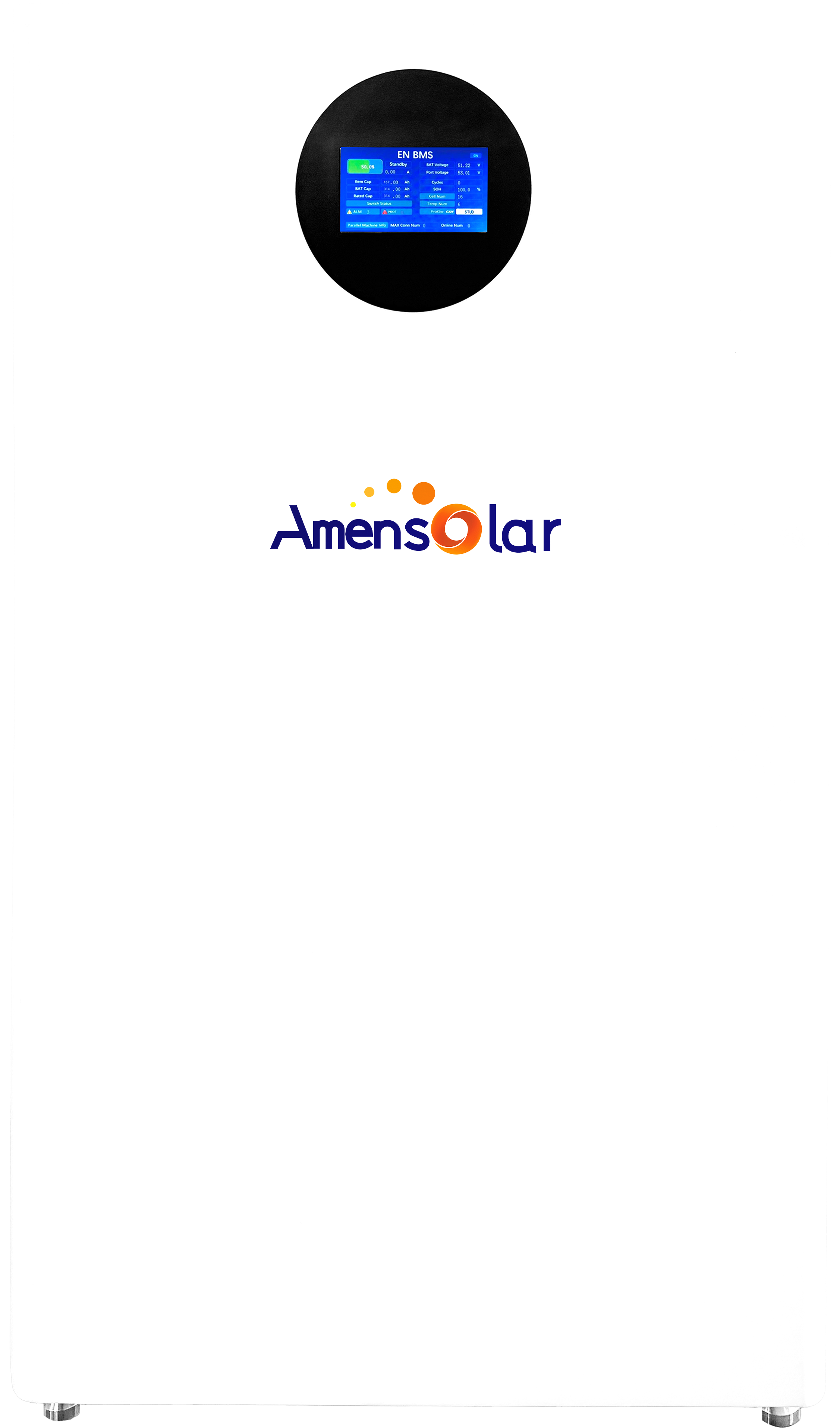

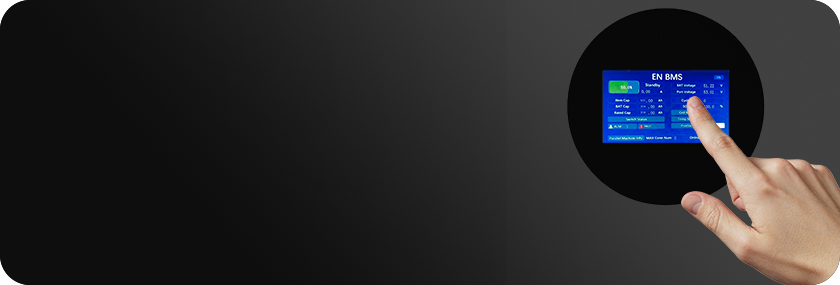

6. Touch screen：Set communication protocol and DIP View battery information.

7. Safety Standard：UL1973/IEC61000/IEC62619/CE/UN38.3/MSDS.

Data Sheet

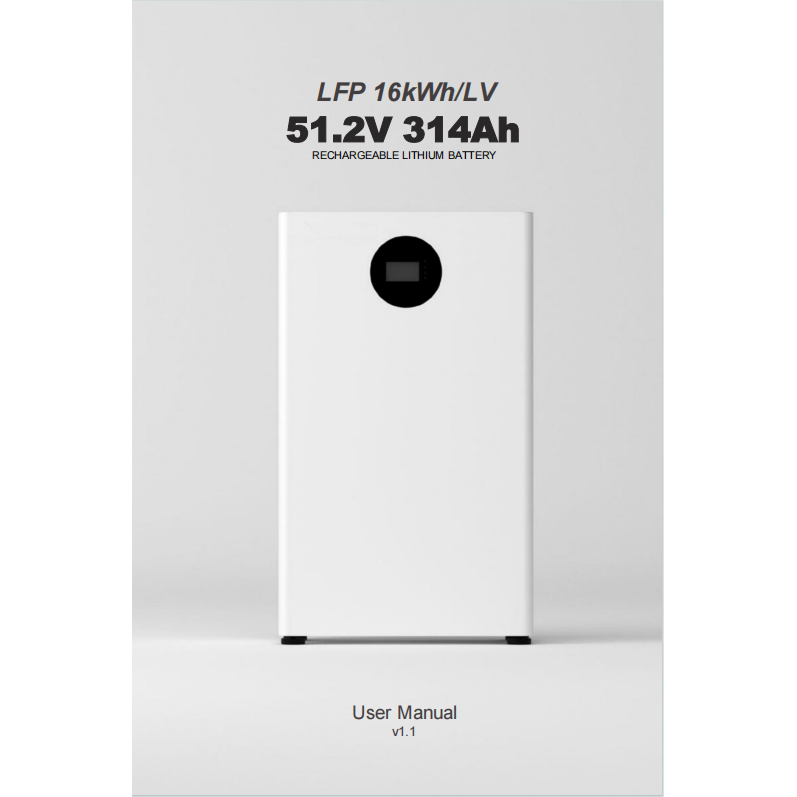

User Manual

AMF16000 51.2V | 16KWH | Floo...

S52300 51.2V | 16KWH | Stac...

Model	LFP 16kWh / LV
Nominal Capacity (at 25℃）	16kWh
Usable Capacity (90%DOD)	14.4kWh
Nominal Dis-/ Charge Power	10kW
Peak Power(Only Discharge)	11.6kW for 3 seconds
Constant Current (Only Discharge)	200A
Operating Voltage Range	43~58V
Nominal Voltage	51.2Vd.c
Weight	120kg
Dimensions (Width × Height × Depth)	530900245mm
Certificates	UL1973/IEC61000/IEC62619/CE/UN38.3/MSDS
Operating Condition	Indoor or outdoor
Operating Temperature Charge	From 0~60℃
Operating Temperature Discharge	From -30~60℃
Humidity	Up to 90%（non- condensing）
Pollution Degree	3
Over Voltage Category	II
Cooling Type	Natural cooling
IP Rating	IP 65
Protective Class	I
Max. Number of Parallel	16
Warranty	10 years
Life Span	>15 years
Communication Interface	CAN / RS485
Protection Mode	Triple hardware protection
Battery Protection	Over-current / Over-voltage Short circuit / Under-voltage
